CMCI

MT05/2 VD

€0.00
Tax included

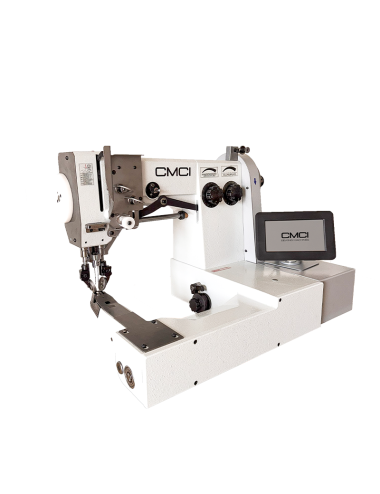

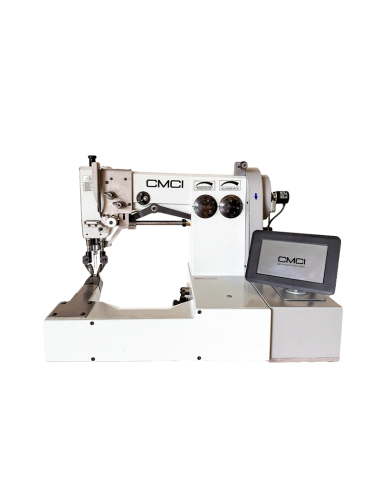

Machine for sewing tubular and non-tubular moccasins, with various designs and a single stitching setup on request.

1 or 2 needle machine with differentiated feed dog, pre-set manual puckering and variable using the kneepad during sewing.

The machine is designed to create 11 different seams and can also sew the assembled moccasin.

Quantity

Add to favorites Add to compare

Technical features

  • Speed: 500 stitches/min
  • Stitch length: 0-8mm
  • Yarns: max 1.0 Waxed
  • Needle system: 328-214 x 2
  • Motor: EFKA dc 1550 control - 220V 50/60 Hz
  • Max. power consumption: 750 Kw
  • Net weight: 126 kg
  • Gross weight: 160 kg
  • Packaging size: 124x70x150 cm

Product Details

MT05/2 VD

Data sheet

Functions

1 Needle
2 Needles
Max sewing speed
500 punti/min
Max stitch lenght
0-8 mm
Needle system
328-214 x 2
Voltage
220V 50/60 Hz
Weight
126 kg

Download

MT05/2-VD Technical Sheet

Download (963.97KB)

MT05/2-VD Spare Parts

Download (1.24MB)

Quick Compare

Product
 MB-50 MB-74/1 MB-74/2-B
Description

Tubular moccasin stitching machine

  • With 1 horizontal needle
  • Oscillating crochet
  • Triple needle tip transport with independent cams
  • Manual ruffle preset and variable by means of a knee in the seam

    The machine performs the following seams:
  • Tubular
  • Inserted - sailing
  • College
  • Opanca

Machine for stitching tubular or mounted moccasins.

  • 1 Needle
  • Oscillating hook
  • Triple presser foot and needle feed
  • Manual clamp ruffling, presettable and adjustable by knee pedal while sewing

The machine can sew the following:

  • Overlapped stitching for tubular and assembled moccasins
  • Reverse overlapped stitching for tubular and assembled mocassins

2-needle sewing machine with 70° inclination

  • With 2 needles
  • Oscillating hook
  • Triple presser foot and needle feed
  • Gathering with manual pliers, preset and variable by means of the kneepad during sewing

The machine performs the following seams:

  • Edge stitching of tubular and mounted moccasin
  • 45° tubular and assembled seam
  • Single-needle stitching on tubular and assembled moccasin
  • overlapping single needle stitching for reversed, tubular and assembled moccasins
Functions
 2 Needle
Max sewing speed
 500 punti/min 400 punti/min 400 punti/min
Max stitch lenght
 0-10 mm 0-8 mm 0-8 mm
Needle system
 4011 o 4035 328 R/200 328 R/200
Voltage
 220V 50/60 Hz 220V 50/60 Hz 220V 50/60 Hz
Weight
 125 kg 130 kg 130 kg
